100 Series ARB Compressor Engine Bay Mount

Lumberjack Engineering & The Artisan Garage have partnered again to bring to you a universal compressor mount for the passenger fender well of your 100 Series LC/LX470!

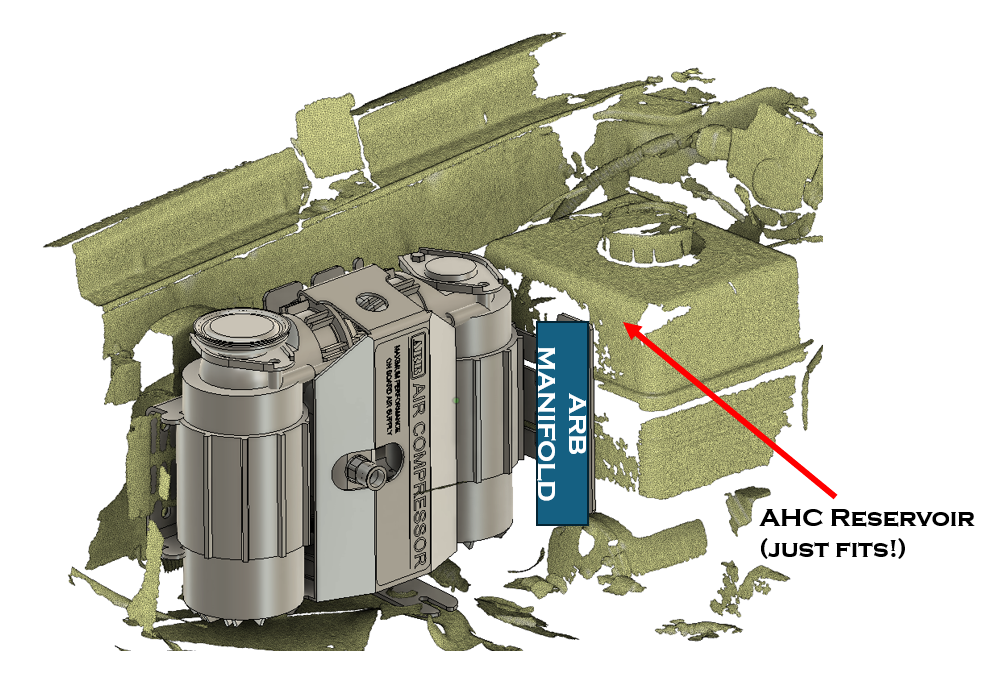

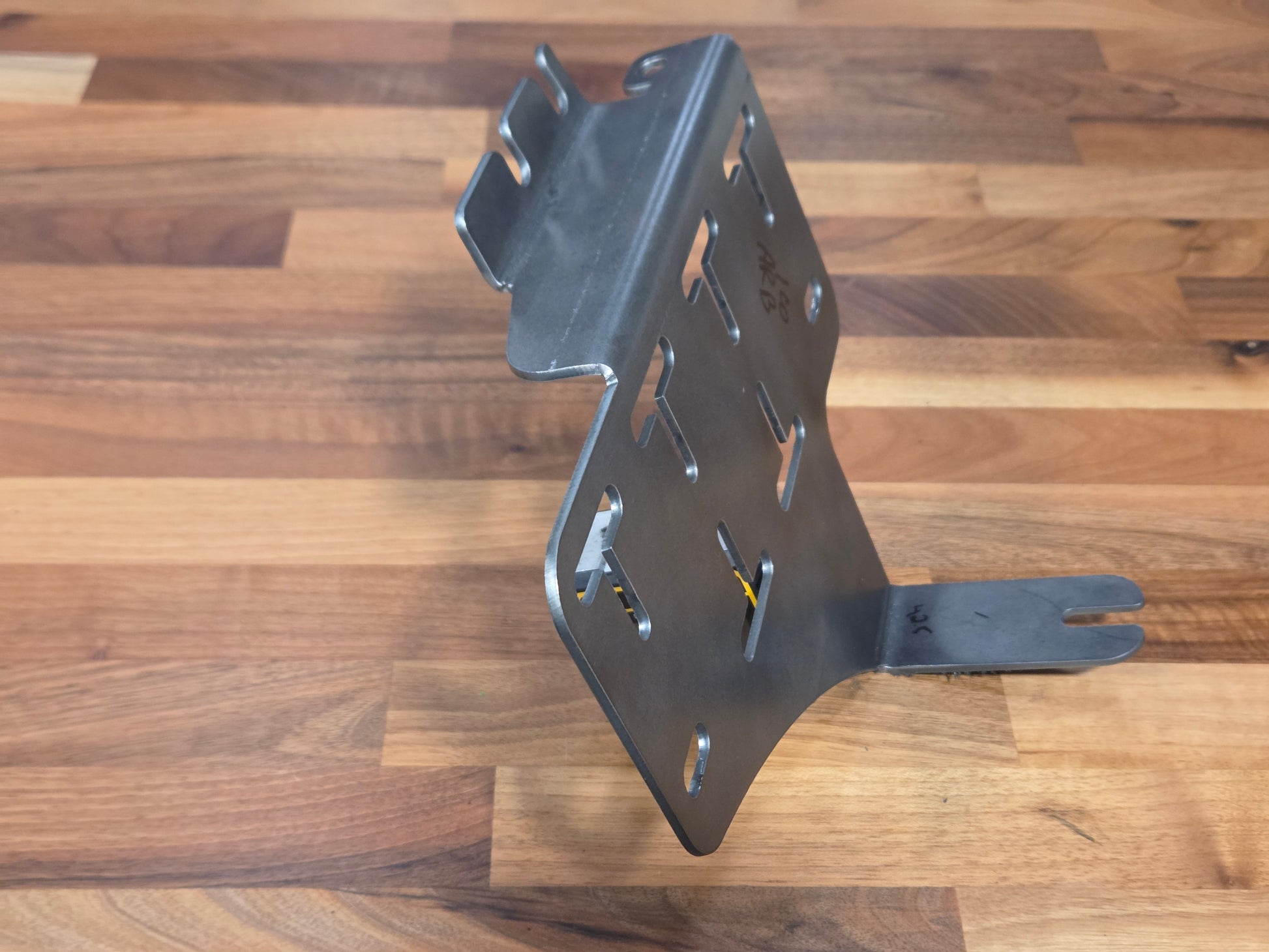

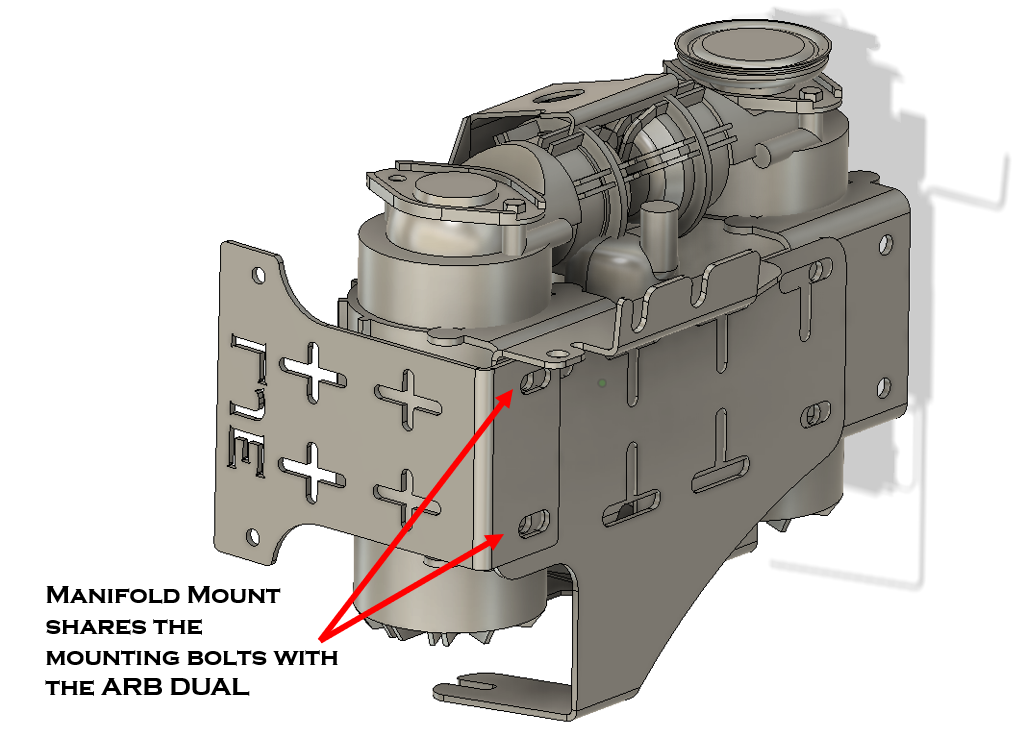

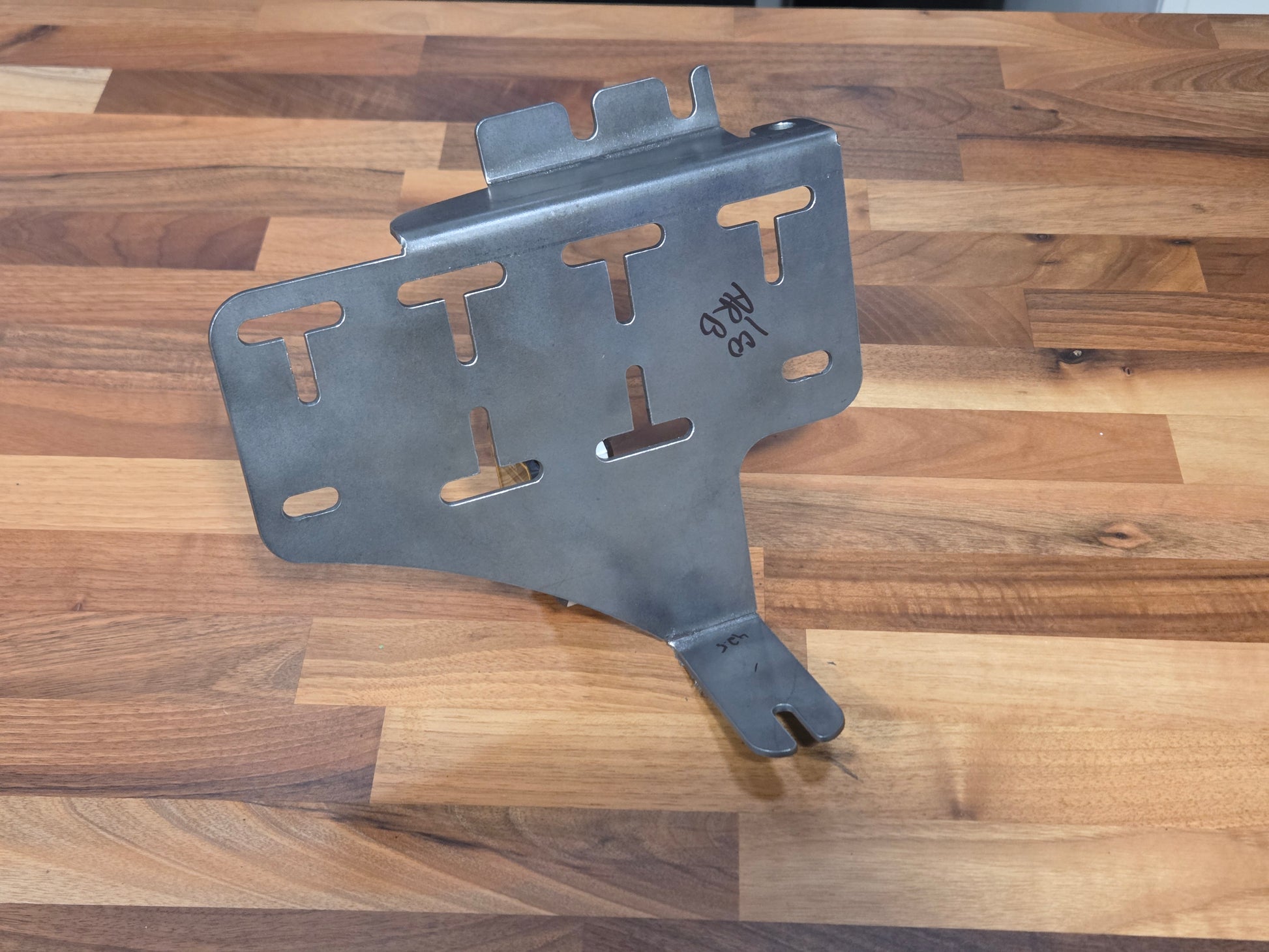

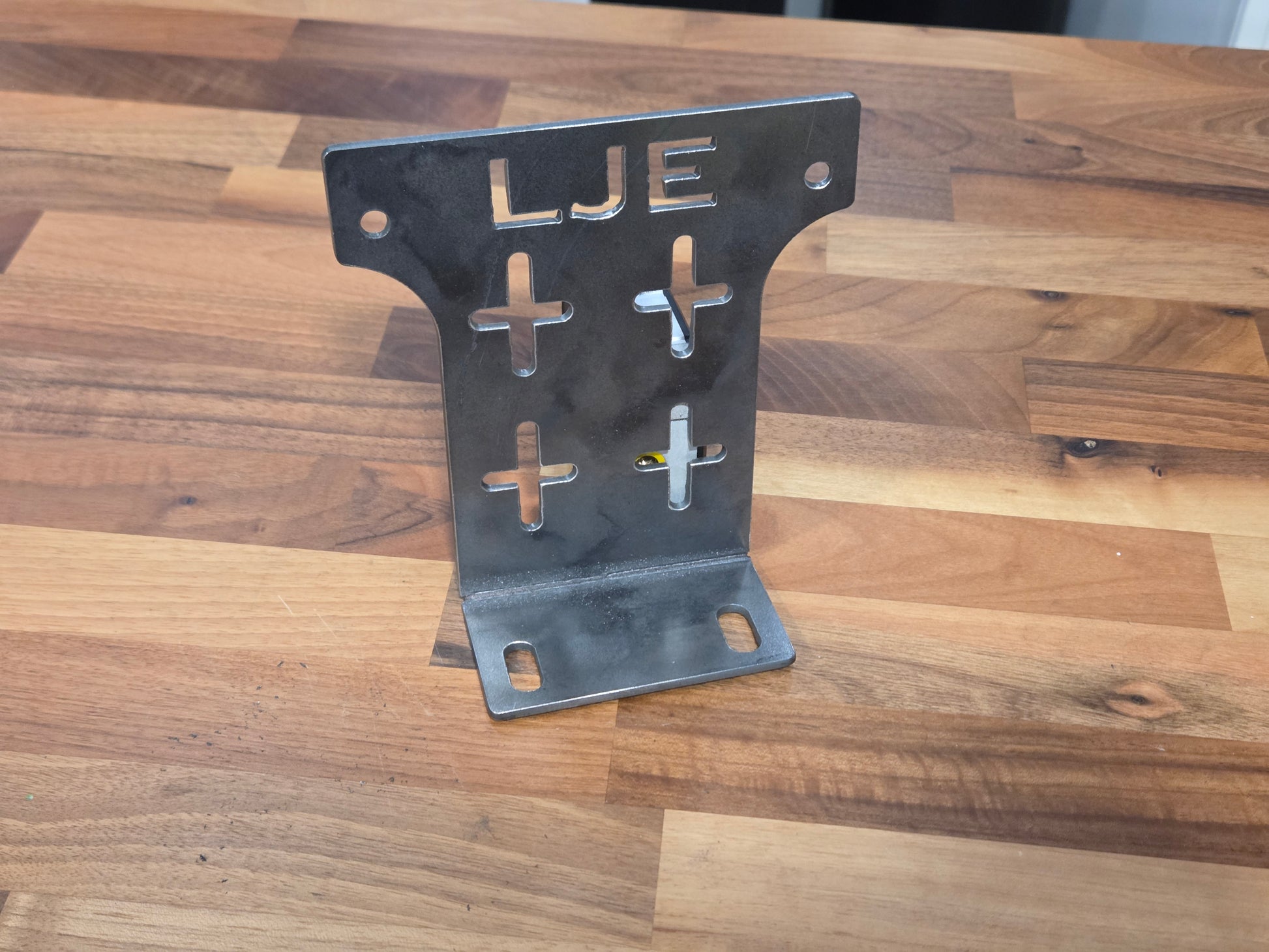

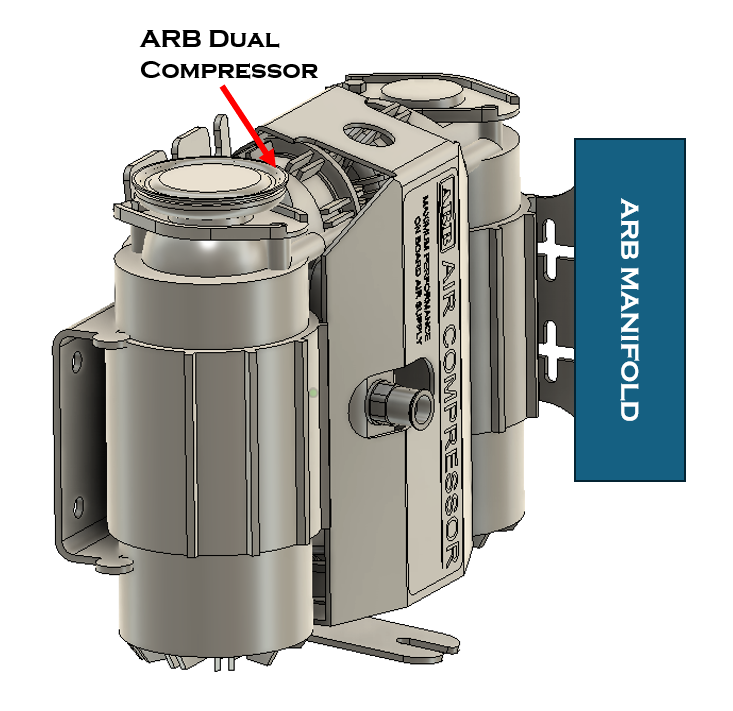

This mount allows you to securely attach an ARB Single High Output compressor, an ARB Dual Compressor + manifold (with additional bracket option selected), or whatever else you may need with it's versatile array of 1/4" slots. It even works for LX470 & AHC-equipped Landcruiser - the bracket keeps everything tucked in front of the AHC pump.

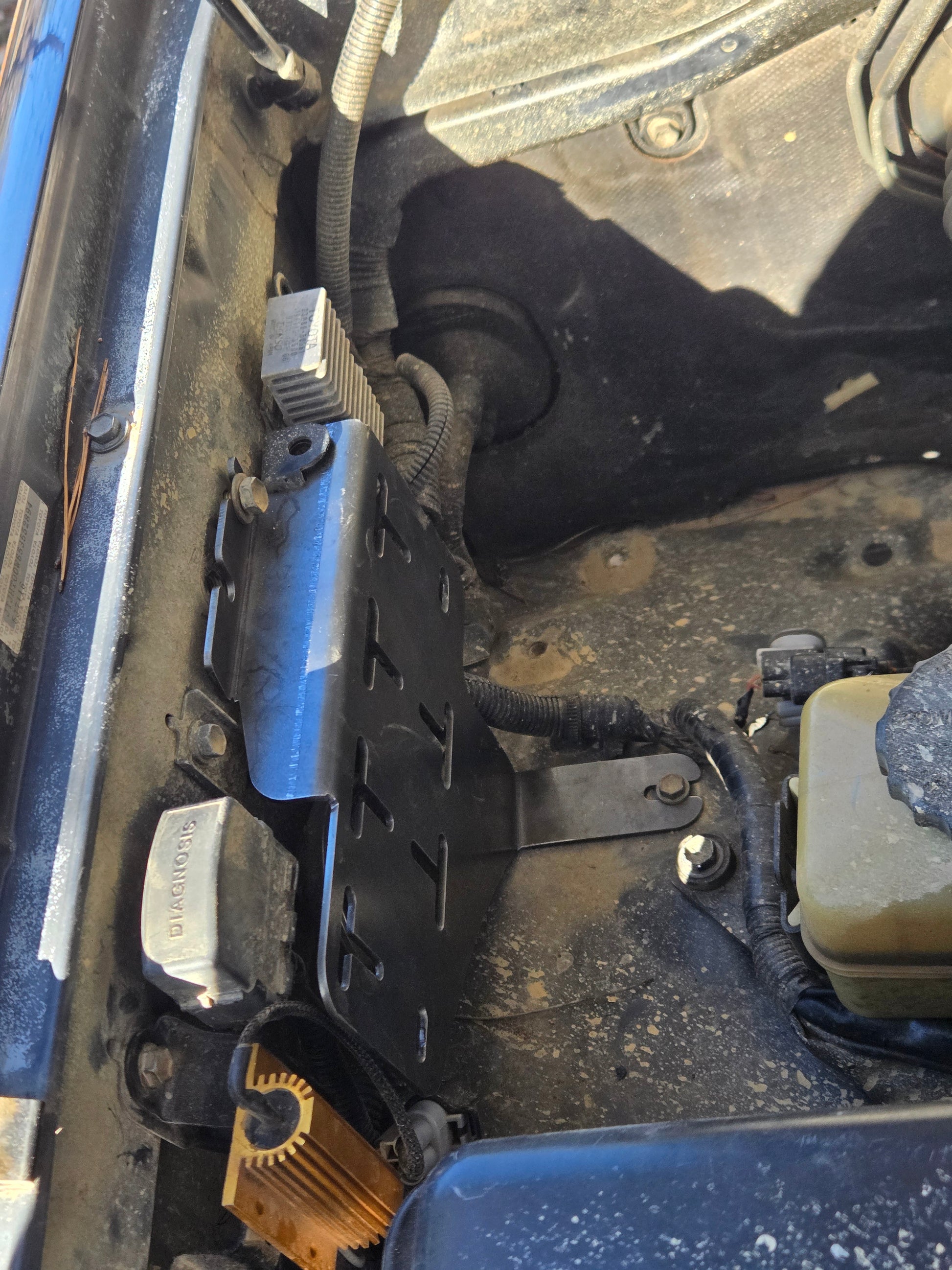

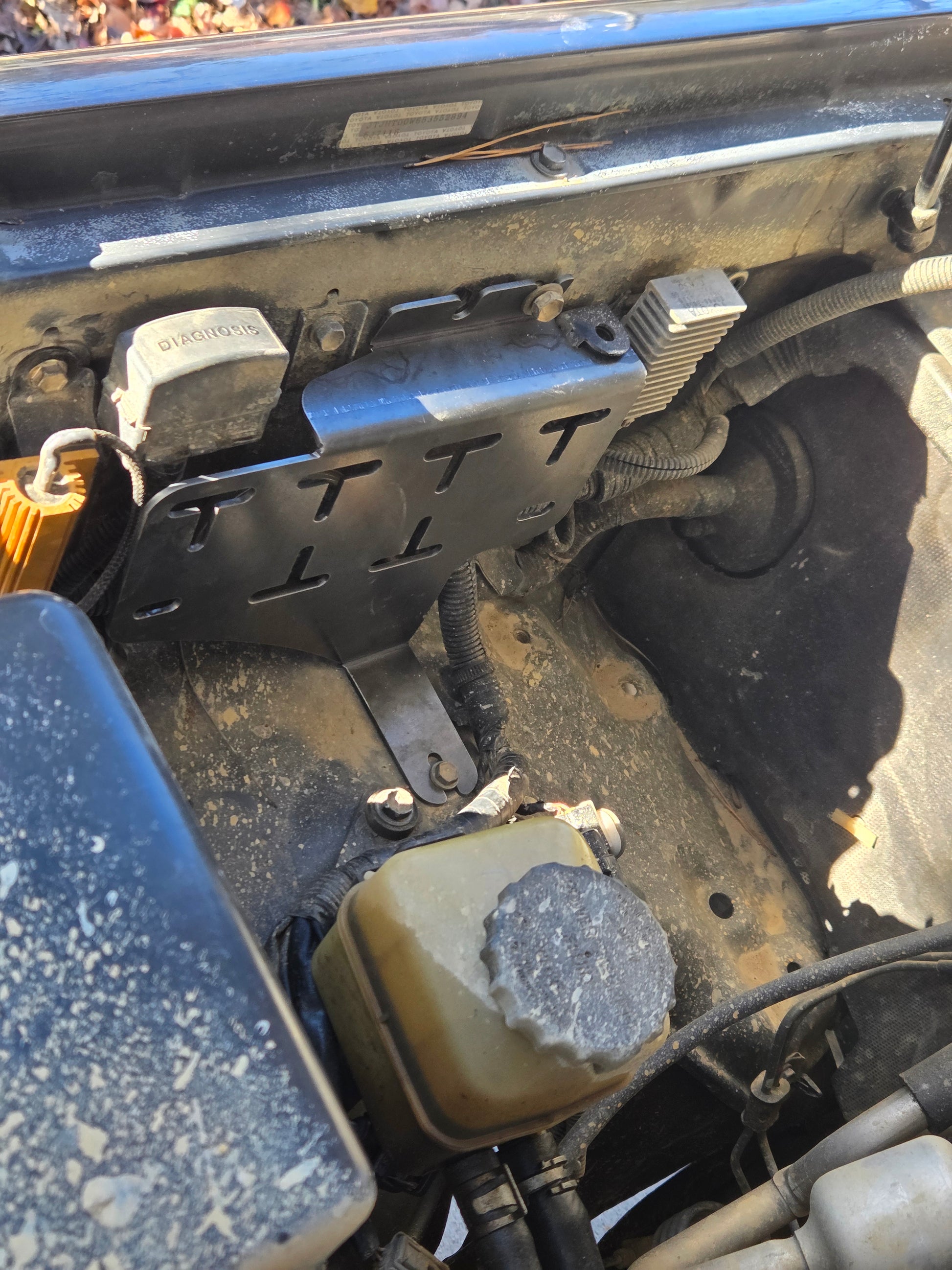

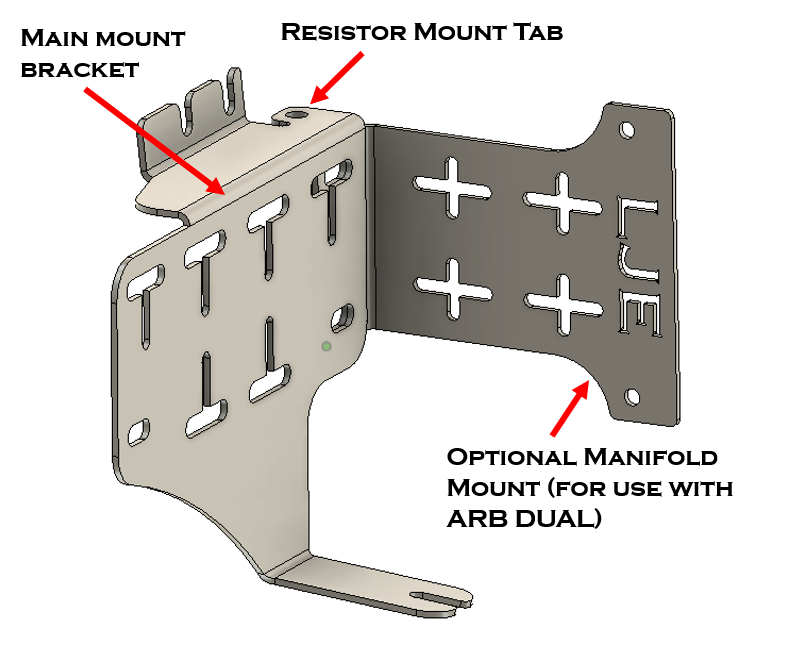

This mount attaches both to the side & the bottom of the fender well via existing threaded bolt holes - simply move the resistor that's occupying one of these holes on the sidewall from the factory onto the bracket via the designated mount hole, and secure it all in place (check out the pictures - it's pretty straight forward!). No permanent modification or drilling required! By attaching in two different planes it ensures that the weight & vibration from even a dual compressor is fully supported to achieve durability that'll rival the rest of your truck.

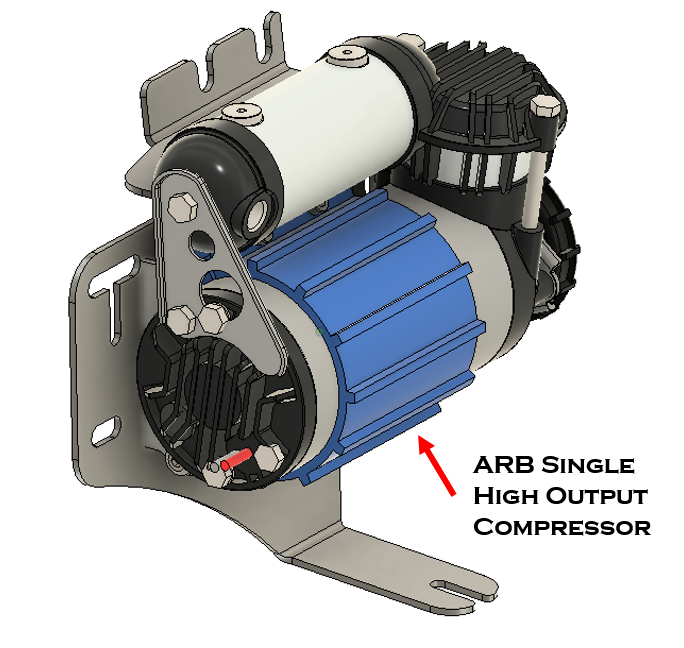

We recommend that if you have a Single High Output compressor, that you clock the manifold to where it's above the compressor body for maximum clearance around it. The Dual compressor will require moving the DRL resistor to use the same bolt hole as the 'beeper'/buzzer (just one bolt hole down - again, super easy!). In either case, attach the compressor onto the mount & then bolt down the mount into your engine bay. Access to the bottom M6 bolt is a little snug (there's just not much space around there!), so a flex head ratcheting wrench (or some patience!) is helpful.

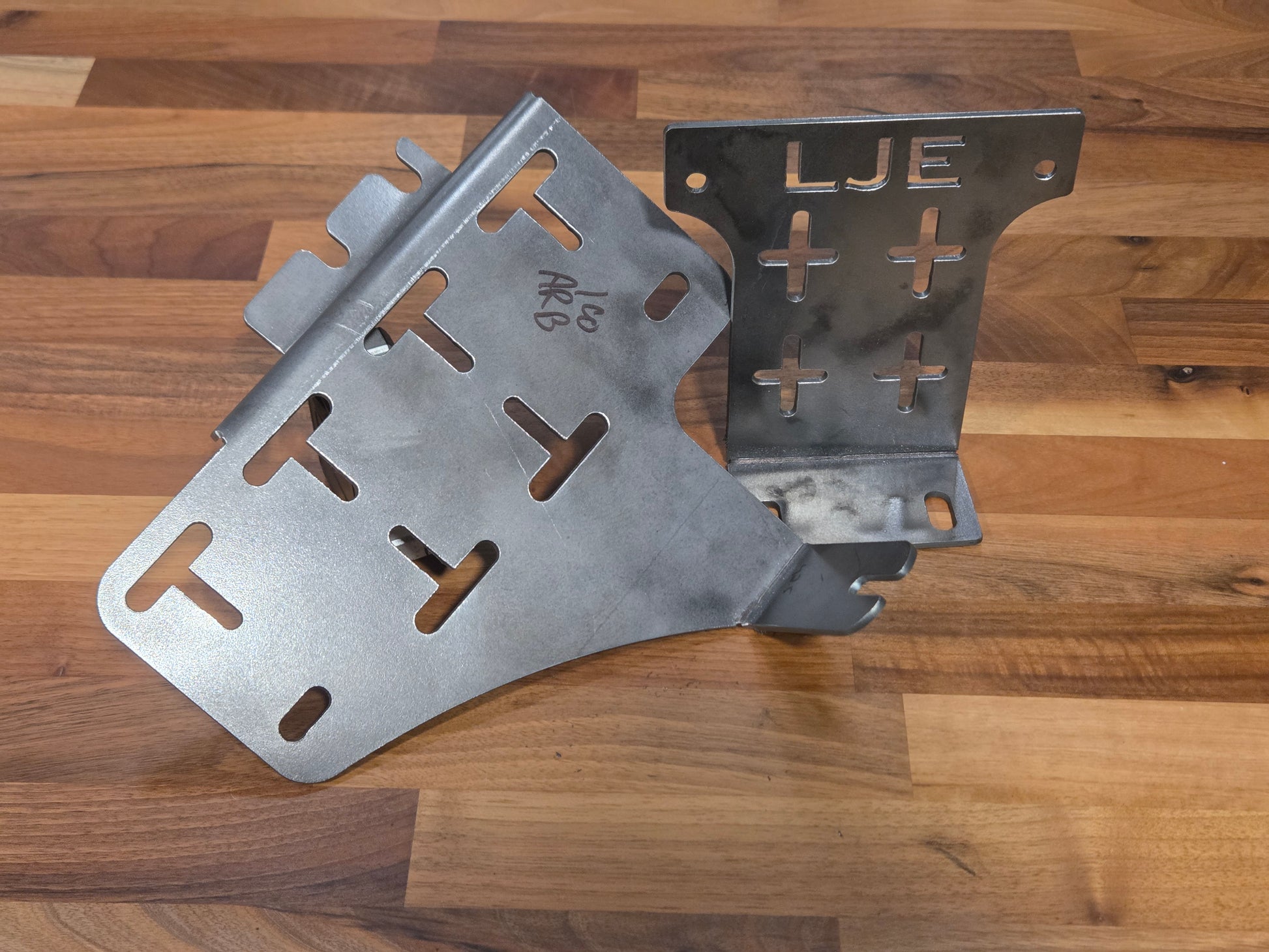

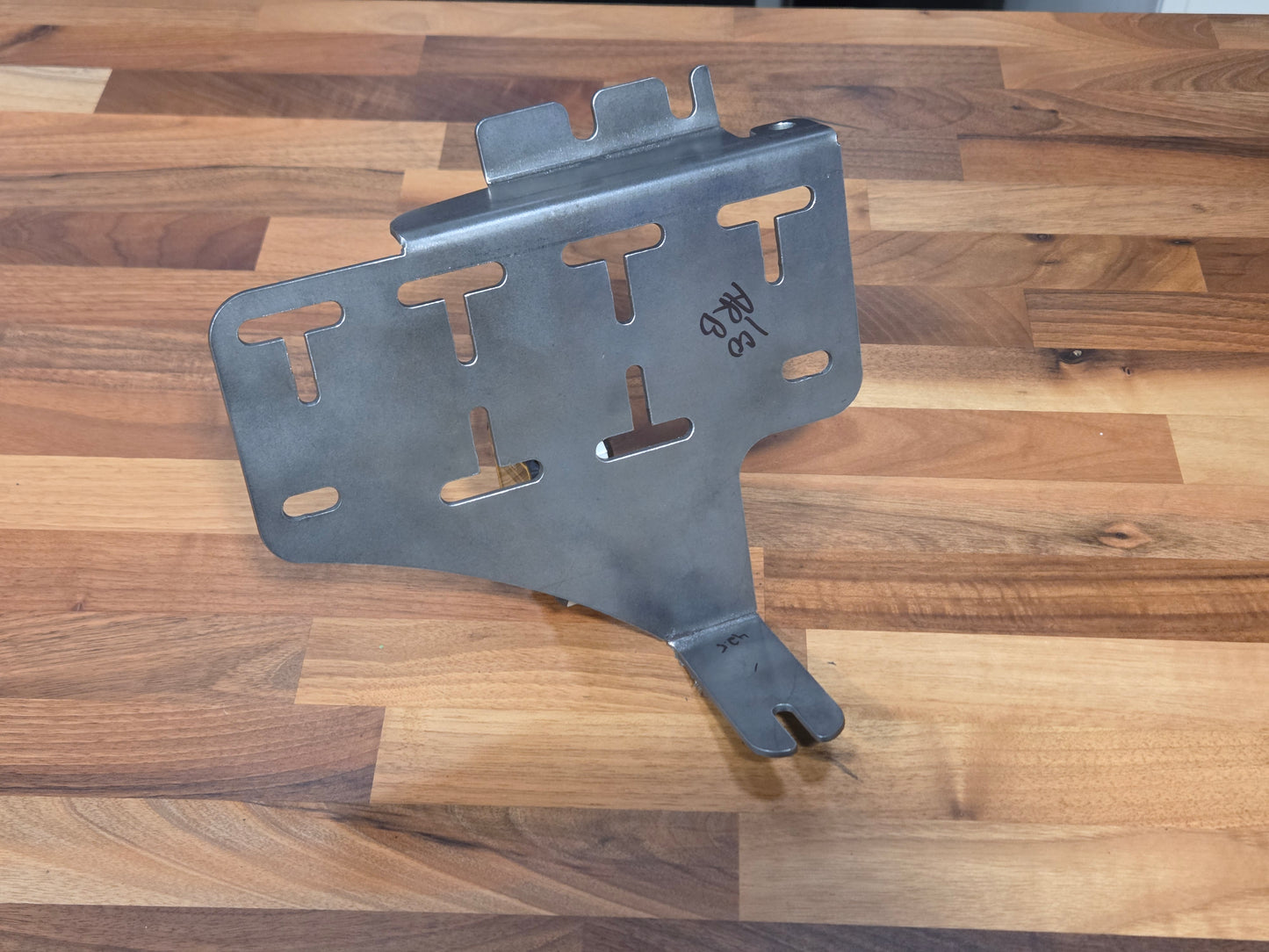

Bracket is shipped as raw 12 gauge steel, and includes all stainless hardware to attach the mount to the engine bay (2x M8 bolts to the fender, an M8 bolt and nut for attaching factory fender well resistor to mount, and 1x M6 bolt) is stainless.
